命名空间
namespace	RenderCallBack
namespace	SceneEvent

类
class	Application
struct	CacheModelMatrix
class	CameraSystem
struct	ComponentFieldInfo
struct	ComponentFilter
	定义组件过滤器，用于runtime view 更多...
struct	ComponentInfo
class	ComponentReflection
class	DataError
class	DataLoader
class	DataManager
struct	DepthStencilDesc
class	EditorApplication
class	EditorCameraManager
struct	EditorGlobal
class	Engine
struct	EngineGlobal
class	EngineScope
class	EntityInspector
struct	EntityRenderContext
	实体渲染上下文结构体更多...
class	EnttInputArchiveWrapper
class	EnttOutputArchiveWrapper
class	FileDataLoader
class	GameApplication
class	GraphViewInsight
struct	ImageNode
class	LightingSystem
struct	LinkInfo
class	MatrixCacheSystem
class	MeshCacheSystem
class	ModelManager
struct	ModelUuidFile
struct	NameTag
struct	PassNode
struct	PassTargetDesc
struct	PinInfo
struct	PixelShaderSource
	定义像素着色器源码更多...
struct	PositionComponent
struct	ProjectSetting
struct	RenderConfig
class	RenderGraphViewer
class	Scene
class	SceneEntityViewer
class	SceneManager
class	SceneTrunk
struct	SceneUuidFile
struct	ScriptFunctionInfo
class	ScriptManager
class	ScriptSystem
struct	SelectedEntityState
struct	StaticMeshInstance
class	SystemManager
class	Tech
class	TechManager
struct	TechName
	定义Tech的名称更多...
class	TechSystem
class	TextureCacheSystem
struct	TextureDesc
class	TypeFactory
class	TypeTag
class	UiManager
struct	VertexShaderSource
	定义顶点着色器源码更多...

类型定义
using	Context = FCT::Context
using	TechBindCallback = std::function<void(FCT::Layout* layout, const std::string& techName, const std::string& passName)>
	Tech绑定回调函数类型
using	EntityOperationCallback = std::function<void(const EntityRenderContext& context)>
	实体操作回调函数类型
using	ComponentValue
using	Window = FCT::Window
using	Uniform = FCT::Uniform
using	ShaderRef = FCT::ShaderRef

枚举
enum class	RenderTarget { Window , Texture }

函数
ENGINE_API const char *	getEngineVersion ()
ENGINE_API Engine &	getEngine ()
ENGINE_API void	OutputDebugObject ()
ENGINE_API std::vector< FCT::_fct_object_t * >	GetDebugObject ()
const char *	textureTypeToString (FCT::ModelInfo::TextureType type)
	将纹理类型枚举转换为字符串
const char *	textureTypeToChineseString (FCT::ModelInfo::TextureType type)
	将纹理类型枚举转换为本地化字符串（中文）
	BOOST_DESCRIBE_STRUCT (PositionComponent,(),(position)) struct ENGINE_API RotationComponent
	BOOST_DESCRIBE_STRUCT (RotationComponent,(),(rotation)) struct ENGINE_API ScaleComponent
	BOOST_DESCRIBE_STRUCT (ScaleComponent,(),(scale)) struct ENGINE_API CameraComponent
	BOOST_DESCRIBE_STRUCT (CameraComponent,(),(active, fov, nearPlane, farPlane)) struct ENGINE_API CacheRotationMatrix
	BOOST_DESCRIBE_STRUCT (StaticMeshInstance,(),(modelUuid, meshName)) struct ENGINE_API ScriptComponent
	BOOST_DESCRIBE_STRUCT (ScriptComponent,(),(functionName)) struct ENGINE_API DirectionalLightComponent
	BOOST_DESCRIBE_STRUCT (DirectionalLightComponent,(),(direction, color, intensity, enabled)) struct ENGINE_API DiffuseTextureComponent
template<typename SnapshotType, typename WrapperType>
void	SerializeComponents (SnapshotType &&snapshot, WrapperType &wrapper)
std::string	openPassGraphFileDialog (bool save)
template<typename T>
void	renderComponent (const T *component)
template<>
void	renderComponent< NameTag > (const NameTag *component)
template<>
void	renderComponent< PositionComponent > (const PositionComponent *component)
template<>
void	renderComponent< RotationComponent > (const RotationComponent *component)
template<>
void	renderComponent< ScaleComponent > (const ScaleComponent *component)
template<>
void	renderComponent< CameraComponent > (const CameraComponent *component)
template<>
void	renderComponent< StaticMeshInstance > (const StaticMeshInstance *component)
template<>
void	renderComponent< ScriptComponent > (const ScriptComponent *component)
template<>
void	renderComponent< CacheRotationMatrix > (const CacheRotationMatrix *component)
template<>
void	renderComponent< CacheModelMatrix > (const CacheModelMatrix *component)
template<>
void	renderComponent< DirectionalLightComponent > (const DirectionalLightComponent *component)
template<>
void	renderComponent< DiffuseTextureComponent > (const DiffuseTextureComponent *component)

变量
EngineGlobal	g_engineGlobal
constexpr FCT::UniformSlot	DirectionalLightUniformSlot
constexpr FCT::UniformSlot	ViewPosUniformSlot
constexpr FCT::UniformSlot	ShadowUniformSlot
constexpr FCT::VertexLayout	StandardMeshVertexLayout
constexpr FCT::UniformSlot	CameraUniformSlot
constexpr FCT::UniformSlot	ModelUniformSlot
EditorGlobal	g_editorGlobal

类型定义说明

◆ ComponentValue

using MQEngine::ComponentValue

初始值:

 std::variant<
        bool, int, float, double, std::string,
        FCT::Vec3
    >

◆ Context

using MQEngine::Context = FCT::Context

◆ EntityOperationCallback

using MQEngine::EntityOperationCallback = std::function<void(const EntityRenderContext& context)>

实体操作回调函数类型

参数

context 渲染上下文

◆ ShaderRef

using MQEngine::ShaderRef = FCT::ShaderRef

◆ TechBindCallback

using MQEngine::TechBindCallback = std::function<void(FCT::Layout* layout, const std::string& techName, const std::string& passName)>

Tech绑定回调函数类型

参数

layout	当前的Layout对象
techName	Tech名称
passName	Pass名称

◆ Uniform

using MQEngine::Uniform = FCT::Uniform

◆ Window

using MQEngine::Window = FCT::Window

枚举类型说明

◆ RenderTarget

enum class MQEngine::RenderTarget

strong

枚举值
Window
Texture

函数说明

◆ BOOST_DESCRIBE_STRUCT() [1/7]

MQEngine::BOOST_DESCRIBE_STRUCT	(	CameraComponent	,
		()	,
		(active, fov, nearPlane, farPlane)	)

◆ BOOST_DESCRIBE_STRUCT() [2/7]

MQEngine::BOOST_DESCRIBE_STRUCT	(	DirectionalLightComponent	,
		()	,
		(direction, color, intensity, enabled)	)

◆ BOOST_DESCRIBE_STRUCT() [3/7]

MQEngine::BOOST_DESCRIBE_STRUCT	(	PositionComponent	,
		()	,
		(position)	)

◆ BOOST_DESCRIBE_STRUCT() [4/7]

MQEngine::BOOST_DESCRIBE_STRUCT	(	RotationComponent	,
		()	,
		(rotation)	)

◆ BOOST_DESCRIBE_STRUCT() [5/7]

MQEngine::BOOST_DESCRIBE_STRUCT	(	ScaleComponent	,
		()	,
		(scale)	)

◆ BOOST_DESCRIBE_STRUCT() [6/7]

MQEngine::BOOST_DESCRIBE_STRUCT	(	ScriptComponent	,
		()	,
		(functionName)	)

◆ BOOST_DESCRIBE_STRUCT() [7/7]

MQEngine::BOOST_DESCRIBE_STRUCT	(	StaticMeshInstance	,
		()	,
		(modelUuid, meshName)	)

◆ GetDebugObject()

std::vector< FCT::_fct_object_t * > MQEngine::GetDebugObject ( )

这是这个函数的调用关系图:

◆ getEngine()

Engine & MQEngine::getEngine ( )

返回: Engine instance

函数调用图:

这是这个函数的调用关系图:

◆ getEngineVersion()

const char * MQEngine::getEngineVersion ( )

返回: engine version

◆ openPassGraphFileDialog()

std::string MQEngine::openPassGraphFileDialog ( bool save )

这是这个函数的调用关系图:

◆ OutputDebugObject()

void MQEngine::OutputDebugObject ( )

这是这个函数的调用关系图:

◆ renderComponent()

template<typename T>

void MQEngine::renderComponent ( const T * component )

这是这个函数的调用关系图:

◆ renderComponent< CacheModelMatrix >()

template<>

void MQEngine::renderComponent< CacheModelMatrix > ( const CacheModelMatrix * component )

inline

◆ renderComponent< CacheRotationMatrix >()

template<>

void MQEngine::renderComponent< CacheRotationMatrix > ( const CacheRotationMatrix * component )

inline

◆ renderComponent< CameraComponent >()

template<>

void MQEngine::renderComponent< CameraComponent > ( const CameraComponent * component )

inline

◆ renderComponent< DiffuseTextureComponent >()

template<>

void MQEngine::renderComponent< DiffuseTextureComponent > ( const DiffuseTextureComponent * component )

inline

◆ renderComponent< DirectionalLightComponent >()

template<>

void MQEngine::renderComponent< DirectionalLightComponent > ( const DirectionalLightComponent * component )

inline

函数调用图:

◆ renderComponent< NameTag >()

template<>

void MQEngine::renderComponent< NameTag > ( const NameTag * component )

inline

◆ renderComponent< PositionComponent >()

template<>

void MQEngine::renderComponent< PositionComponent > ( const PositionComponent * component )

inline

函数调用图:

◆ renderComponent< RotationComponent >()

template<>

void MQEngine::renderComponent< RotationComponent > ( const RotationComponent * component )

inline

函数调用图:

◆ renderComponent< ScaleComponent >()

template<>

void MQEngine::renderComponent< ScaleComponent > ( const ScaleComponent * component )

inline

函数调用图:

◆ renderComponent< ScriptComponent >()

template<>

void MQEngine::renderComponent< ScriptComponent > ( const ScriptComponent * component )

inline

◆ renderComponent< StaticMeshInstance >()

template<>

void MQEngine::renderComponent< StaticMeshInstance > ( const StaticMeshInstance * component )

inline

◆ SerializeComponents()

template<typename SnapshotType, typename WrapperType>

void MQEngine::SerializeComponents	(	SnapshotType &&	snapshot,
		WrapperType &	wrapper )

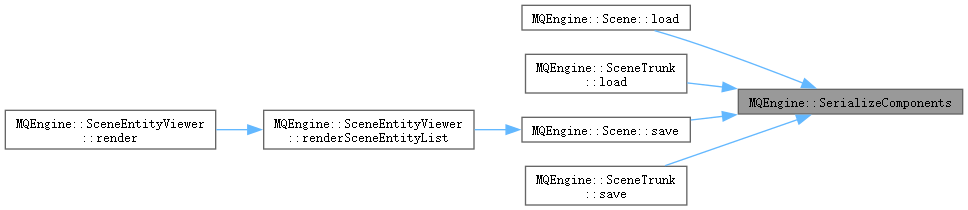

这是这个函数的调用关系图:

◆ textureTypeToChineseString()

ENGINE_API const char * MQEngine::textureTypeToChineseString ( FCT::ModelInfo::TextureType type )

将纹理类型枚举转换为本地化字符串（中文）

参数

type 纹理类型

返回: 对应的中文字符串描述

这是这个函数的调用关系图:

◆ textureTypeToString()

ENGINE_API const char * MQEngine::textureTypeToString ( FCT::ModelInfo::TextureType type )

将纹理类型枚举转换为字符串

参数

type 纹理类型

返回: 对应的字符串描述

变量说明

◆ CameraUniformSlot

FCT::UniformSlot MQEngine::CameraUniformSlot

constexpr

初始值:

{
        "CameraUniform",
        FCT::UniformVar{FCT::UniformType::ProjectionMatrix},
        FCT::UniformVar{FCT::UniformType::ViewMatrix}
    }

◆ DirectionalLightUniformSlot

FCT::UniformSlot MQEngine::DirectionalLightUniformSlot

constexpr

初始值:

{
    "DirectionalLightUniform",
    FCT::UniformVar{FCT::UniformType::Vec4,"directionalLightDirection"},
    FCT::UniformVar{FCT::UniformType::Vec3,"directionalLightColor"},
    FCT::UniformVar{FCT::UniformType::Float,"directionalLightIntensity"},
    FCT::UniformVar{FCT::UniformType::Bool,"directionalLightEnable"}
}

◆ g_editorGlobal

EditorGlobal MQEngine::g_editorGlobal

◆ g_engineGlobal

ENGINE_API EngineGlobal MQEngine::g_engineGlobal

◆ ModelUniformSlot

FCT::UniformSlot MQEngine::ModelUniformSlot

constexpr

初始值:

{
        "ModelUniform",
        FCT::UniformVar{FCT::UniformType::ModelMatrix,"modelMatrix"}
    }

◆ ShadowUniformSlot

FCT::UniformSlot MQEngine::ShadowUniformSlot

constexpr

初始值:

{
    "ShadowUniform",
    FCT::UniformVar{FCT::UniformType::MVPMatrix,"directionalLightMvp"}
}

◆ StandardMeshVertexLayout

FCT::VertexLayout MQEngine::StandardMeshVertexLayout

constexpr

初始值:

{
            FCT::VertexElement{FCT::VtxType::Color4f,"color"},
            FCT::VertexElement{FCT::VtxType::Position4f,"position"},
            FCT::VertexElement{FCT::VtxType::TexCoord2f,"texCoord"},
            FCT::VertexElement{FCT::VtxType::Normal3f,"normal"},
    }

◆ ViewPosUniformSlot

FCT::UniformSlot MQEngine::ViewPosUniformSlot

constexpr

初始值:

{
    "ViewPosUniform",
    FCT::UniformVar{FCT::UniformType::Vec3,"viewPosition"}
}

命名空间

类

类型定义

枚举

函数

变量

类型定义说明

◆ ComponentValue

◆ Context

◆ EntityOperationCallback

◆ ShaderRef

◆ TechBindCallback

◆ Uniform

◆ Window

枚举类型说明

◆ RenderTarget

函数说明

◆ BOOST_DESCRIBE_STRUCT() [1/7]

◆ BOOST_DESCRIBE_STRUCT() [2/7]

◆ BOOST_DESCRIBE_STRUCT() [3/7]

◆ BOOST_DESCRIBE_STRUCT() [4/7]

◆ BOOST_DESCRIBE_STRUCT() [5/7]

◆ BOOST_DESCRIBE_STRUCT() [6/7]

◆ BOOST_DESCRIBE_STRUCT() [7/7]

◆ GetDebugObject()

◆ getEngine()

◆ getEngineVersion()

◆ openPassGraphFileDialog()

◆ OutputDebugObject()

◆ renderComponent()

◆ renderComponent< CacheModelMatrix >()

◆ renderComponent< CacheRotationMatrix >()

◆ renderComponent< CameraComponent >()

◆ renderComponent< DiffuseTextureComponent >()

◆ renderComponent< DirectionalLightComponent >()

◆ renderComponent< NameTag >()

◆ renderComponent< PositionComponent >()

◆ renderComponent< RotationComponent >()

◆ renderComponent< ScaleComponent >()

◆ renderComponent< ScriptComponent >()

◆ renderComponent< StaticMeshInstance >()

◆ SerializeComponents()

◆ textureTypeToChineseString()

◆ textureTypeToString()

变量说明

◆ CameraUniformSlot

◆ DirectionalLightUniformSlot

◆ g_editorGlobal

◆ g_engineGlobal

◆ ModelUniformSlot

◆ ShadowUniformSlot

◆ StandardMeshVertexLayout

◆ ViewPosUniformSlot
